The group’s northern mill

Steel pipe, rolled in Malakand for the north

MS and GI pipe, hollow section, scaffolding tube and cold rolled steel tubing — manufactured at Shah Kot Palai in Malakand, so sites across Khyber Pakhtunkhwa collect in hours instead of waiting on the haul from Punjab.

Malakand

Malakand Manufactured in KPK
Sch 10–80 MS pipe schedules
L · M · H GI grades to BS EN 10255
5 lines Pipe, GI, section, scaffold, CR tube
  • MALAKAND WORKS
  • SERVING KPK
  • MS & GI PIPE
  • SCH 10 – 80
  • GRADE L · M · H
  • SCAFFOLD TUBE BS EN 39
  • HOLLOW SECTION
  • CUT TO LENGTH
  • SAME-WEEK DISPATCH
  • DIRECT MILL SUPPLY

Why work with us

Built where the northern projects are

01

North of the long haul

The mill stands in District Malakand, so KPK sites collect from inside the province instead of paying for the trip from Punjab.

02

Quick off the stack

Standard sizes go out the same week wherever stock allows, with the lead time on made-to-order sizes confirmed in writing.

03

The full range, one call

Pipe, galvanized pipe, hollow section, scaffold tube and cold rolled tube from a single supplier and a single delivery.

04

Direct mill supply

Production, testing and dispatch run directly from the Malakand works without intermediaries.

Most of the steel pipe used in Khyber Pakhtunkhwa is rolled hundreds of kilometres away and trucked up. A.N. Pipe Industries manufactures at Shah Kot Palai in Tehsil Thana Baizai, District Malakand — inside the province, on the corridor that serves Mardan, Swat, Dir and the Malakand division itself.

The range is the same one the group manufactures across all its mills — MS pipe in Schedule 10 through 80, hot-dipped galvanized pipe in Grades L, M and H, ERW square and rectangular hollow section, scaffolding tube to BS EN 39, and cold rolled steel tubing. Production, testing and dispatch run directly from the mill in Malakand.

More about the company

The range

What we manufacture

One mill, five product lines — pipe, tube, section, scaffold and coil — all made to published international standards.

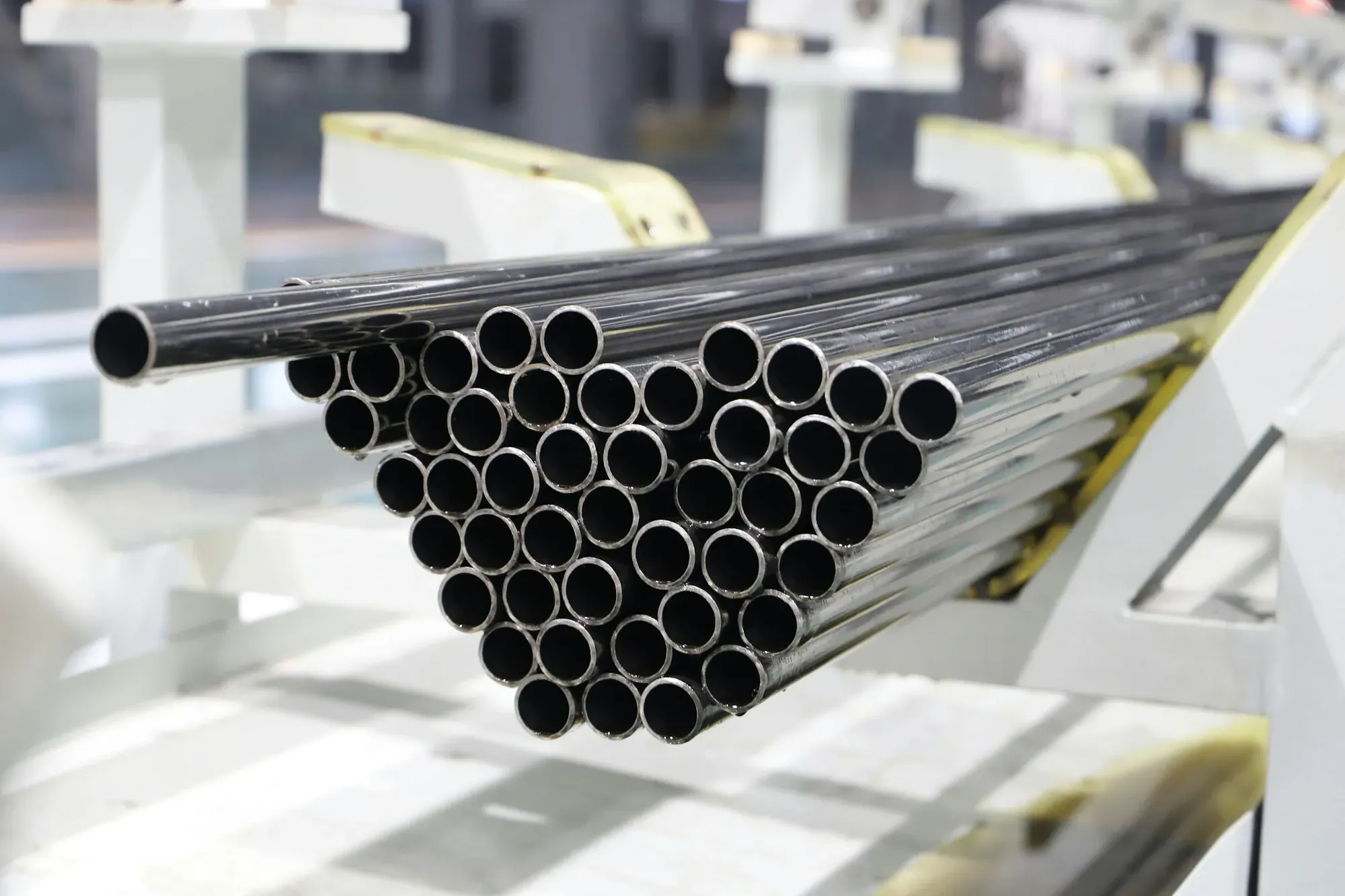

MS Pipe (Mild Steel Black Pipe)

MS Pipe

Schedule 10, 20, 40 and 80 to ASTM A53, Grade A and Grade B

Electric resistance welded mild steel pipe from 1/2" to 16" diameter in wall thicknesses to 12 mm, hydro-tested and supplied against ASTM A53 and ASME B36.10M in Grade A and Grade B.

Size range
1/2" to 16" dia, wall to 12 mm
Standards
ASTM A53 · ASME B36.10M · JIS
Specifications

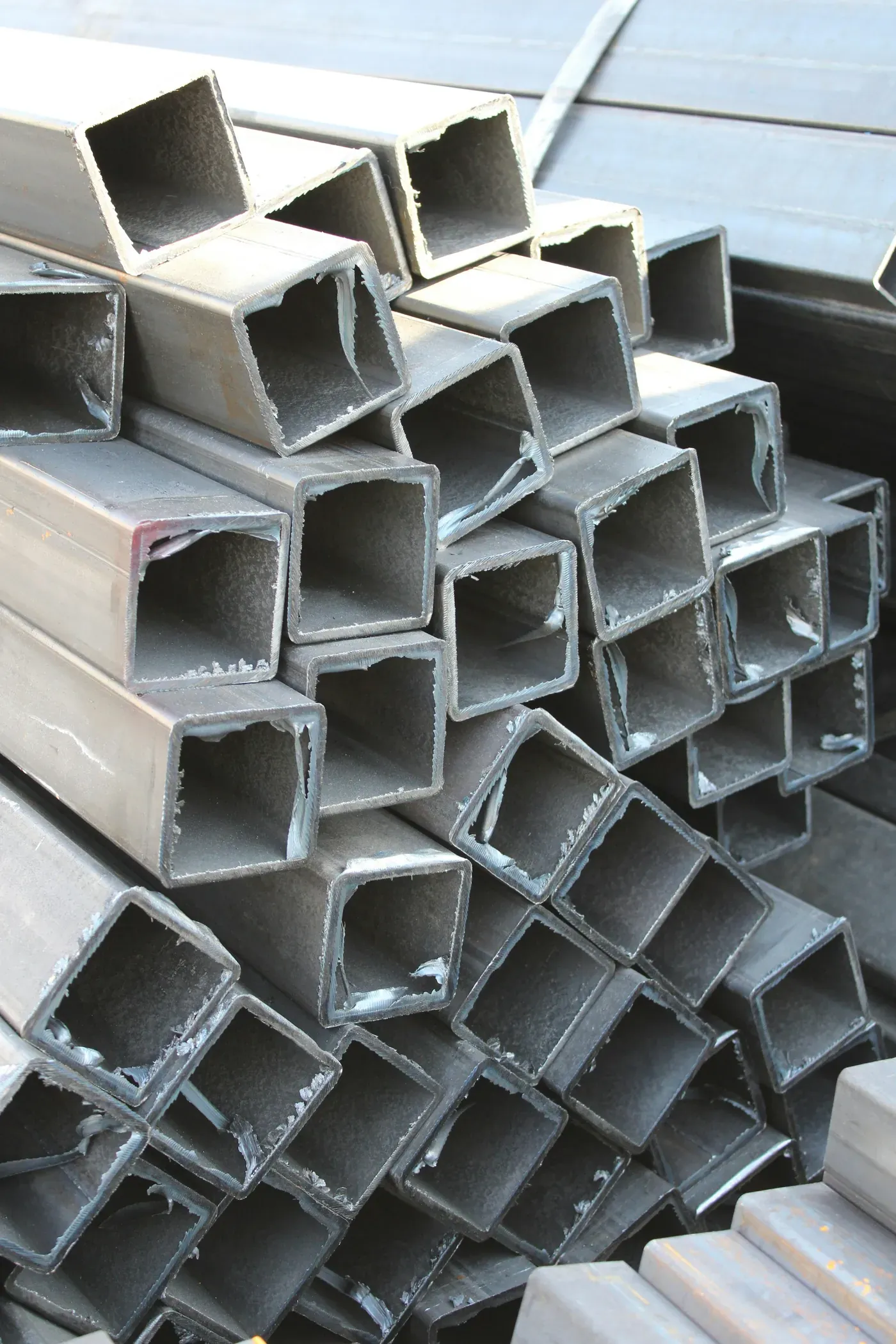

Square & Rectangular MS Pipe

Square & Rect Pipe

Square and rectangular ERW pipe in 0.6 mm to 4.0 mm wall

Electric resistance welded square and rectangular mild steel pipe from 10 × 10 mm to 100 × 100 mm and 10 × 20 mm to 60 × 120 mm, in wall thicknesses from 0.6 mm to 4.0 mm with guaranteed square geometry.

Size range
Square 10 × 10 to 100 × 100 mm; Rect 10 × 20 to 60 × 120 mm; wall 0.6 mm to 4.0 mm
Standards
BS EN 10305-5 · EN 10219 · ASTM A500
Specifications

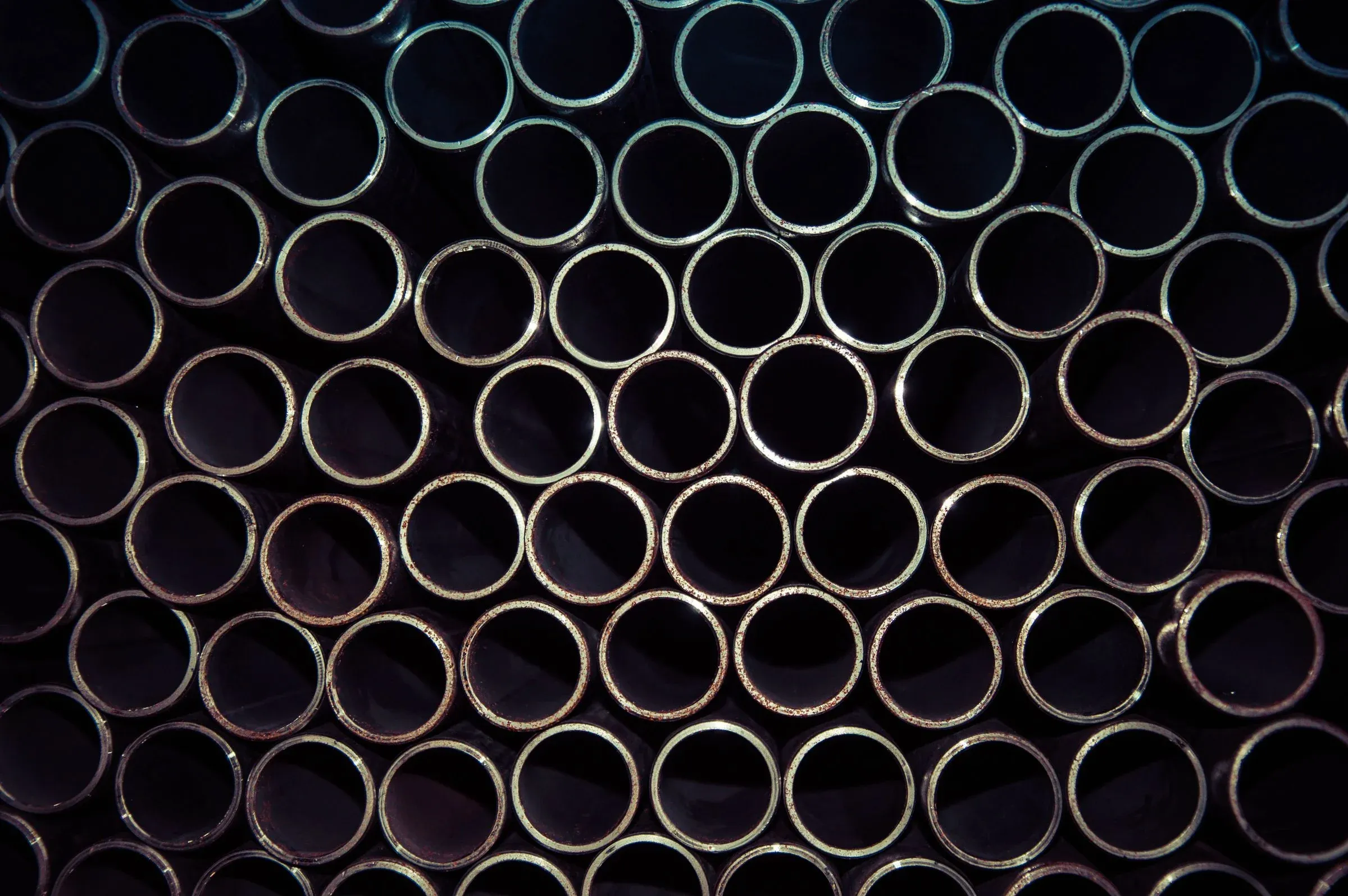

Steel Conduit Pipe

Steel Conduit

BS 4568 Class 3 and IS 9537 Part 2 conduit, plus trade weight chart

Electric resistance welded steel conduit manufactured to BS 4568 Class 3 and IS 9537 Part 2, threaded to metric standard, with trade gauge weight charts for 20 ft lengths.

Size range
16 mm to 50 mm (1/2" to 2-7/8" trade round); 23 G to 16 G wall
Standards
BS 4568-1 Class 3 · IS 9537 (Part 2) · BS EN 61386
Specifications
L, T, Z and D Profiles

LTZD Profiles

L, T, Z and D sections for doors, windows, gates and railings

Architectural roll-formed steel profiles — L, T, Z and D sections from 0.70 mm to 1.20 mm — developed for door, window, gate and railing fabrication in residential and commercial construction.

Size range
L, T, Z, D sections; 0.70 mm to 1.20 mm wall
Standards
ISO 9001 · ISO 14001 · ISO 45001
Specifications

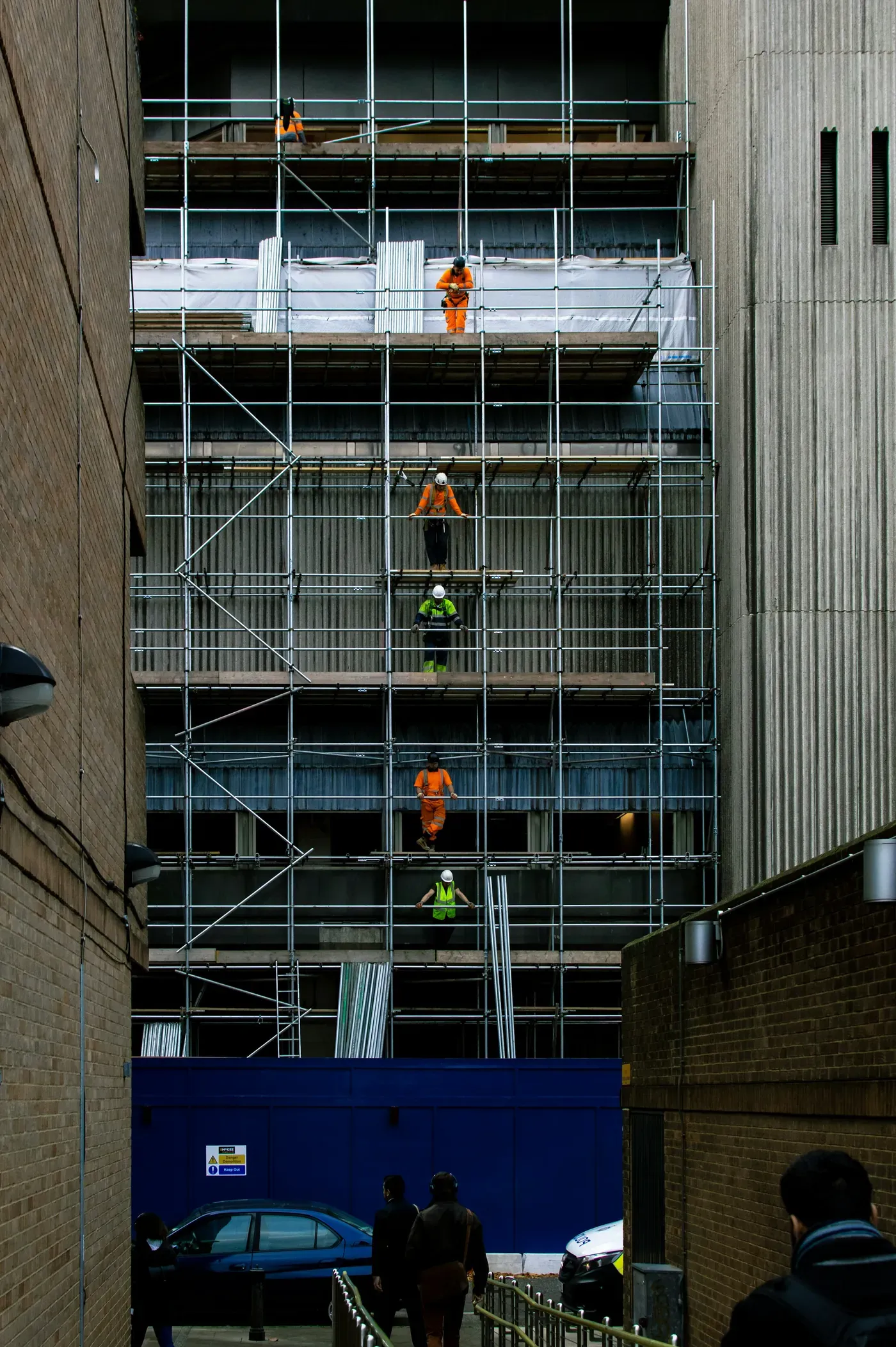

Scaffolding Tubes

Scaffolding

Type 3 and Type 4 to BS EN 39:2001 — safety first

Tube-and-coupler scaffolding tube in 1 1/2" nominal bore (48.3 mm OD), 3.2 mm (Type 3) and 4.0 mm (Type 4) wall, manufactured from prime high-strength steel to BS EN 39:2001, with 3.0 mm light tube supplied to order.

Size range
48.3 mm OD (1 1/2" nominal), 3.0 mm to 4.0 mm wall
Standards
BS EN 39:2001
Specifications

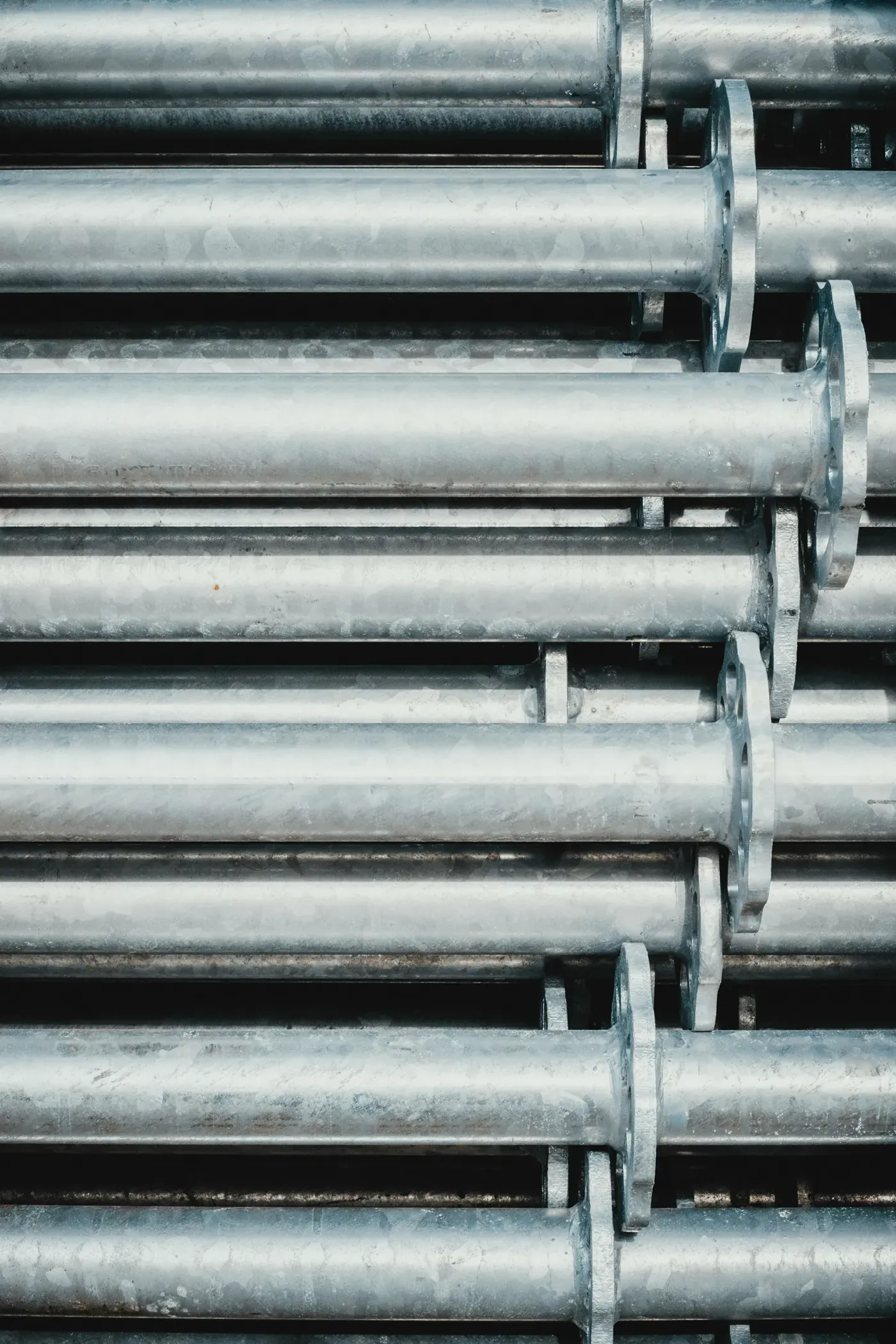

Galvanized Iron (GI) Pipe

GI Pipe

Hot-dipped galvanized to BS EN 10255:2004 in Grades L, M and H

Hot-dipped galvanized iron pipe in Grades L, M and H, threaded to BS EN 10226:2004, rated to 50 bar hydro pressure and suitable for drinking water.

Size range
15 mm to 150 mm (1/2" to 6")
Standards
BS EN 10255:2004 · BS EN 10226:2004 · ASTM A53
Specifications

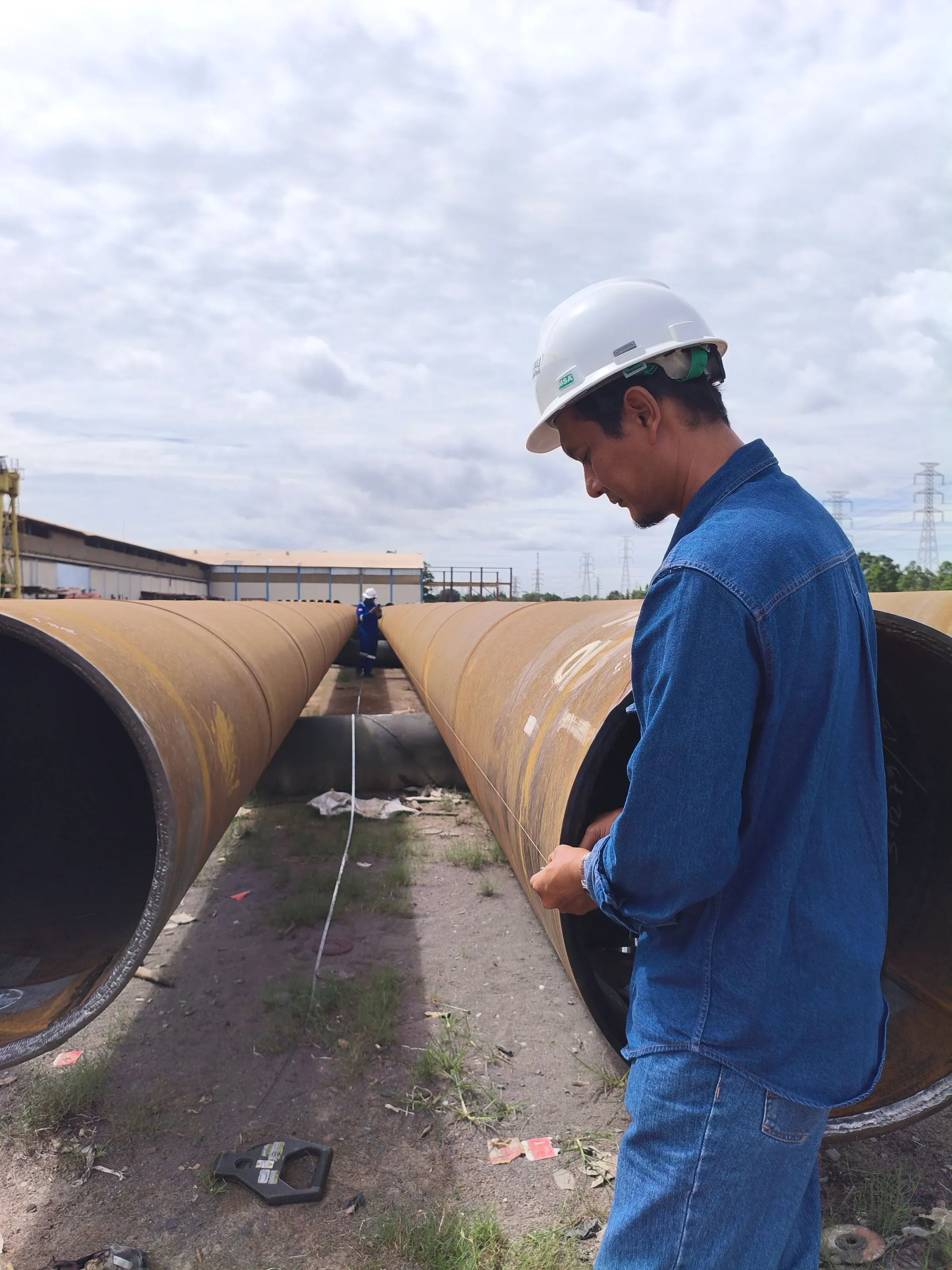

API 5L Line Pipe

API 5L Line Pipe

PSL 1 and PSL 2, Grade B through X60, for oil, gas and water transmission

Electric resistance welded line pipe manufactured under API 5L licence in PSL 1 and PSL 2, Grade B through X60, for oil, gas and water transmission.

Size range
Certified range per licence scope — confirm with sales
Standards
API 5L · ISO 3183 · ASTM A53
Specifications

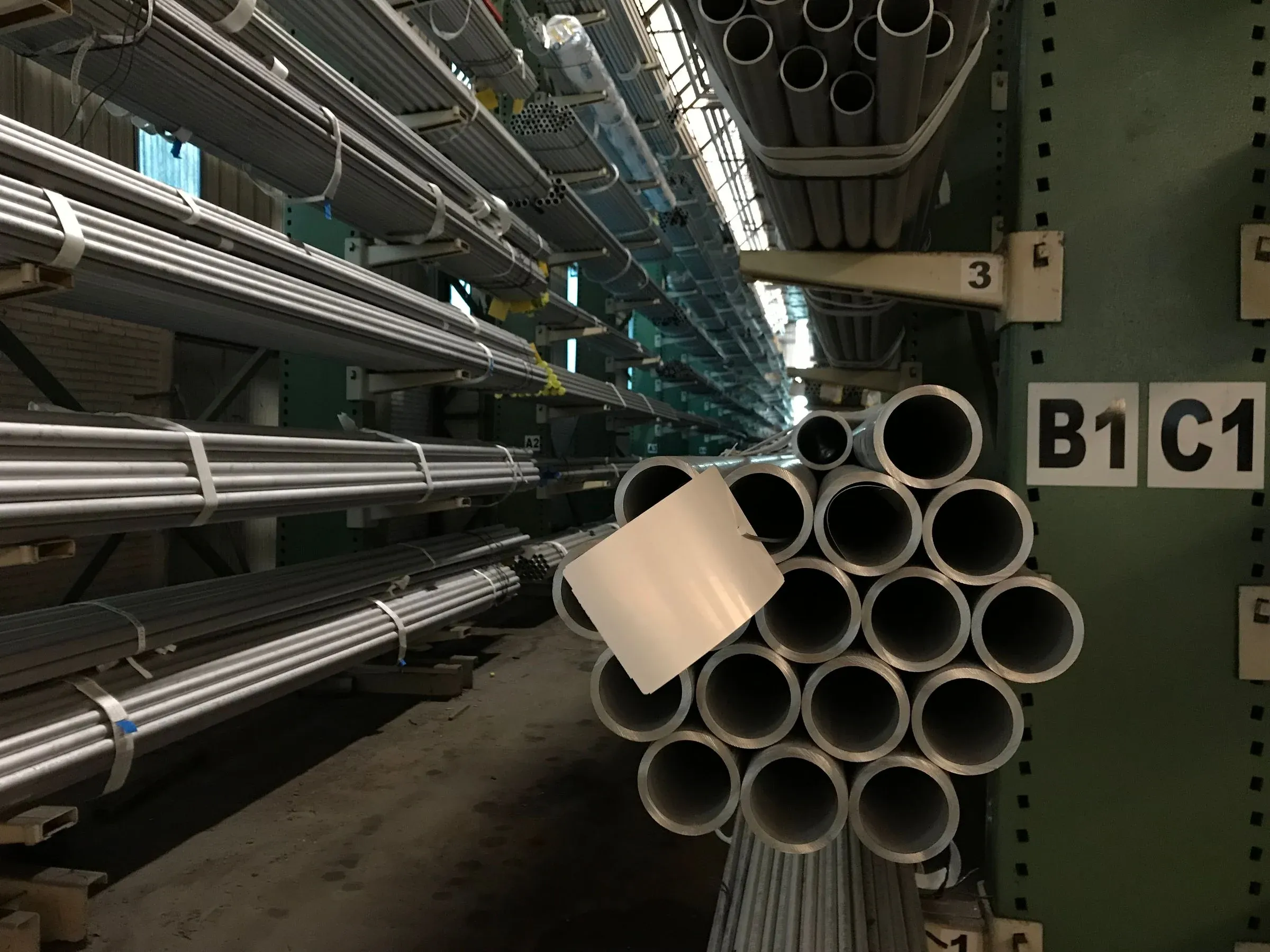

High, Medium & Low Pressure Boiler Tubes

Boiler Tubes

Tube for steam, heat transfer and pressure duty

High, medium and low pressure boiler tube for steam lines, heat exchangers and pressure service — one of the tubular lines named in the company profile, made on the same plant and to the same incoming inspection as the pipe range.

Size range
Sizes and wall thicknesses to enquiry
Standards
ASTM A178 Gr. A · ASTM A214 · BS 3059 Pt 1 & 2
Specifications

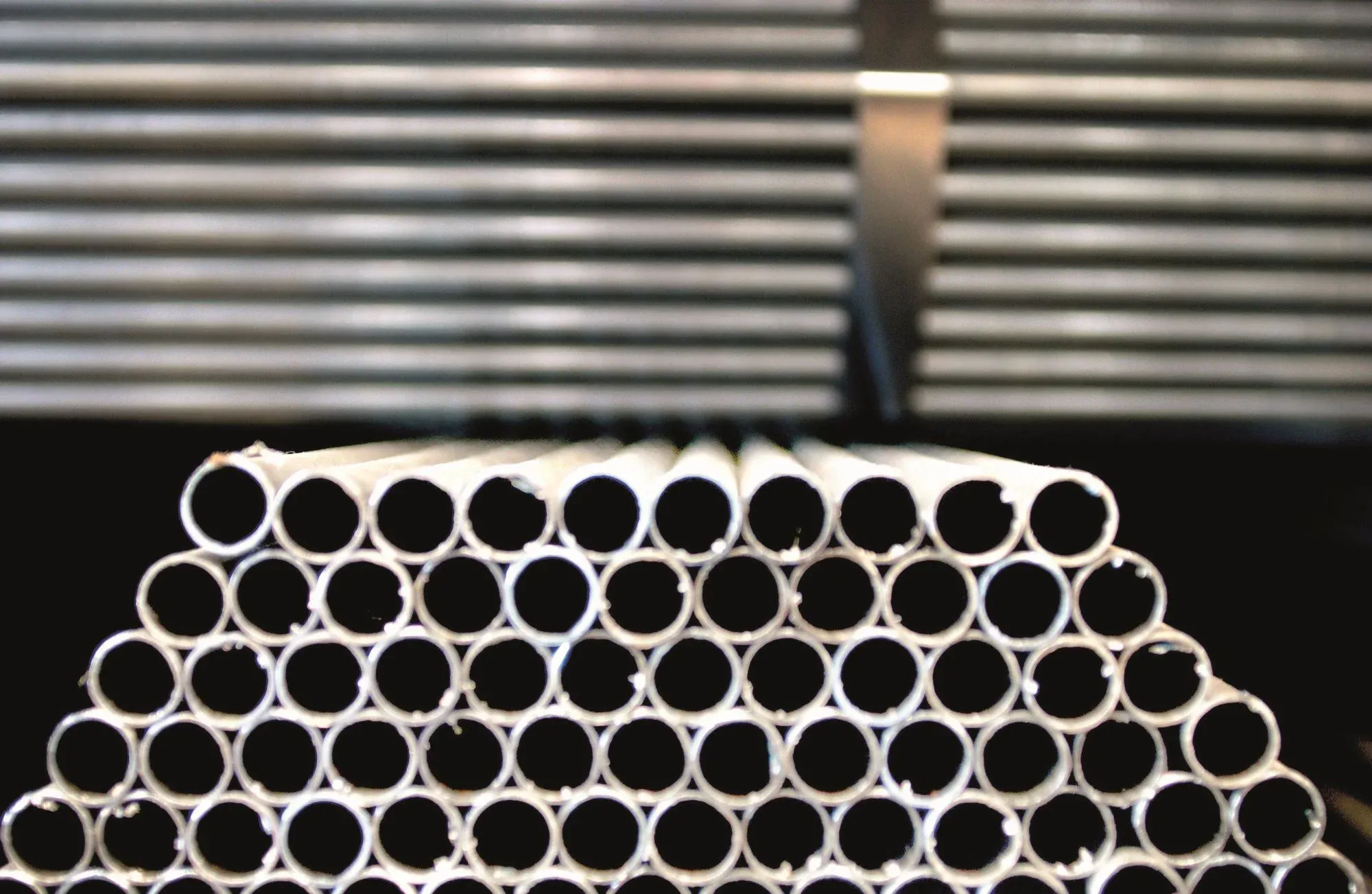

Cold Rolled Precision Tubing

CR Precision Tubing

Round, oval and elliptical precision tube in 0.6 mm to 3.2 mm wall

Cold rolled and precision ERW steel tube in round, oval and elliptical sections, 0.6 mm to 3.2 mm wall, made to BS 1717, BS EN 10305-3 and ASTM A513, finished for plating, bending and drawing.

Size range
9.0 mm to 76.2 mm OD; 0.60 mm to 3.20 mm wall
Standards
BS 1717 · BS EN 10305-3 · ASTM A513
Specifications

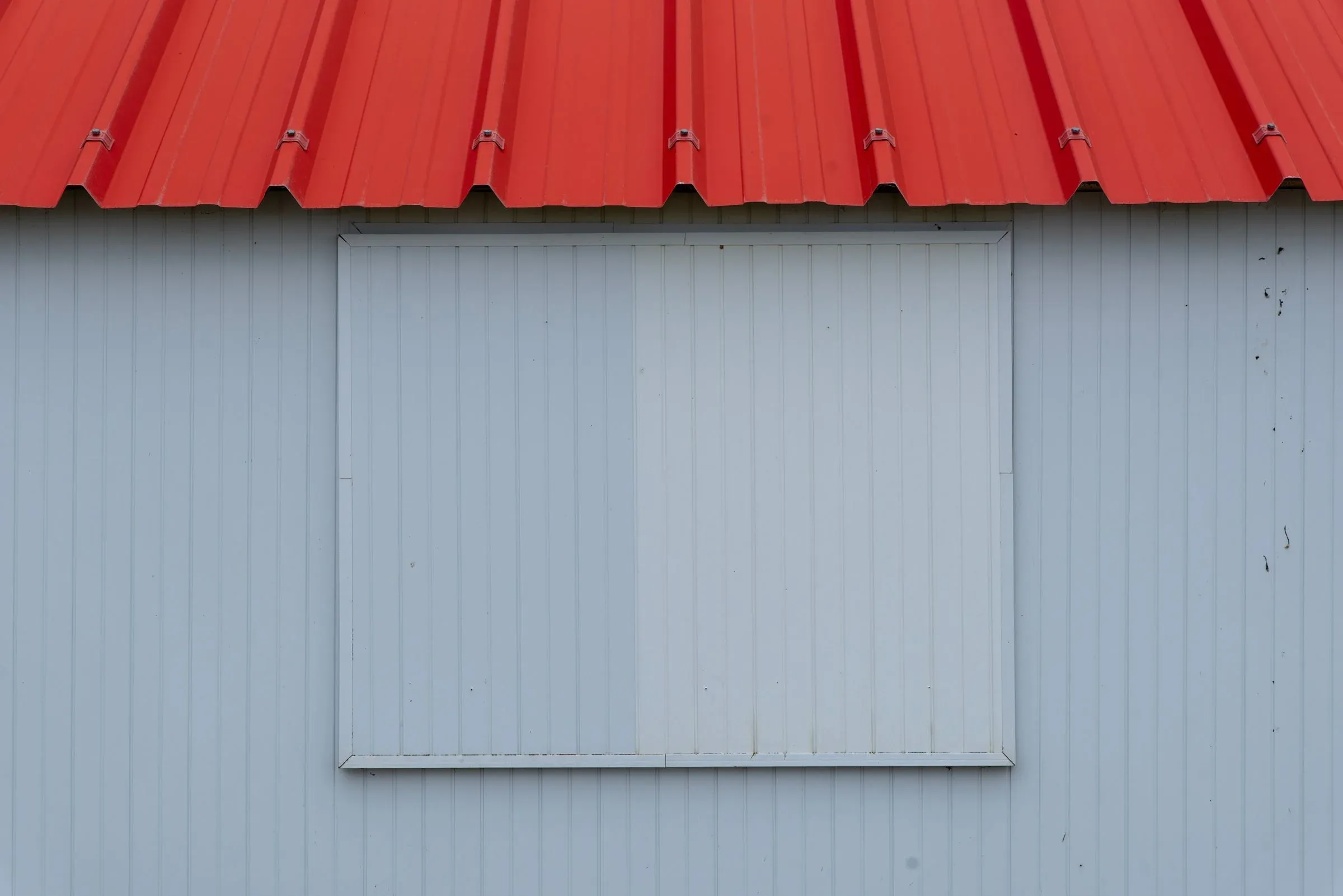

Sheet Profiles — MS, GI & PPGI

Sheet Profiles

Plain, galvanized and colour-coated sheet, flat or roll-formed

Mild steel, galvanized and pre-painted sheet in coil and cut length, supplied flat or roll-formed into corrugated, trapezoidal and tile roofing profiles.

Size range
0.12 mm to 20 mm, widths to 1500 mm
Standards
ASTM A1011 / A1008 · ASTM A653/A653M · EN 10346
Specifications

All products and specifications

Capability

Built where the northern projects are

Most of the steel pipe used in Khyber Pakhtunkhwa is rolled hundreds of kilometres away and trucked up. A.N. Pipe Industries manufactures at Shah Kot Palai in Tehsil Thana Baizai, District Malakand — inside the province, on the corridor that serves Mardan, Swat, Dir and the Malakand division itself.

More about the company
Malakand Manufactured in KPK
Sch 10–80 MS pipe schedules
Shah Kot Palai in Tehsil Thana Baizai puts the mill inside Khyber Pakhtunkhwa

Applications

What the range gets used for

From municipal water mains to boiler tubing and site scaffolds — the same mill, specified across a dozen sectors.

Typical applications

  • Fire fighting
  • Water distribution lines
  • High pressure lines
  • Steam lines
  • Hot and chilled water lines
  • Chemical liquid lines
  • Gas and oil projects
  • Structural steel framing
  • Furniture manufacture
  • Steel houses and prefabricated buildings
  • Grilles, gates and railings
  • Conduit & cable containment
  • General fabrication & machinery frames
  • Electrical wiring and cable containment
  • Light structural and framing work
  • Furniture and display frames
  • Commercial and industrial wiring runs
  • Architectural and interior fittings
  • Door and window frames
  • Steel gates and railings
  • Low-cost and prefabricated housing
  • Security grilles and screens
  • Architectural glazing frames
  • General metal fabrication
  • Construction site access scaffolds
  • Industrial repair and maintenance
  • Petrochemical plant shutdowns
  • Infrastructure projects
  • Support platforms and formwork
  • Demolition works
  • Drinking water supply networks
  • Domestic plumbing risers and mains
  • Irrigation and tube-well lines
  • Fire-fighting reticulation
  • Low-pressure gas distribution
  • Structural and fencing work
  • Oil and gas transmission
  • Gas distribution networks
  • Water transmission mains
  • Petroleum product lines
  • Refinery and terminal piping
  • Casing and general pressure duty
  • Heat exchange tubes
  • Hot and chill water lines
  • Power generation
  • Automotive and motorcycle components
  • Bicycle frames and fittings
  • Transformer manufacture
  • Fans, furniture and tent frames
  • Chrome-plated and formed parts
  • Roofing sheets and wall cladding
  • Heavy duty shelving and racking
  • Machine guarding and frames
  • Electrical cabinets and enclosures
  • Storage tanks and bins
  • Shipping container panels
  • Industrial sheds and warehouses
  • Ducting and ventilation
  • Partitions, false ceilings and trunking
  • Furniture and white goods pressings
  • General fabrication and pressing

Sectors we supply

  • Cement
  • Power generation
  • Oil refineries
  • Sugar
  • Textile
  • Pharmaceutical
  • Mining
  • Chemical
  • Fertilizer
  • Construction & infrastructure

Capacity

Built where the northern projects are

Most of the steel pipe used in Khyber Pakhtunkhwa is rolled hundreds of kilometres away and trucked up. A.N. Pipe Industries manufactures at Shah Kot Palai in Tehsil Thana Baizai, District Malakand — inside the province, on the corridor that serves Mardan, Swat, Dir and the Malakand division itself.

Malakand
Manufactured in KPK
Sch 10–80
MS pipe schedules
L · M · H
GI grades to BS EN 10255

Where we make it

Our plant in Malakand

Shah Kot Palai in Tehsil Thana Baizai puts the mill inside Khyber Pakhtunkhwa — a short run from Mardan, Swat, Dir and the Peshawar valley. Production, testing and dispatch run directly from the works.

A.N. Pipe production

Directions, capacity and dispatch
